RM0008
22.7.2
22.7.3
Controller area network (bxCAN)
Time triggered communication mode
In this mode, the internal counter of the CAN hardware is activated and used to generate the
Time Stamp value stored in the CAN_RDTxR/CAN_TDTxR registers, respectively (for Rx
and Tx mailboxes). The internal counter is incremented each CAN bit time (refer to
Section 22.7.7: Bit timing ). The internal counter is captured on the sample point of the Start
Of Frame bit in both reception and transmission.
Reception handling
For the reception of CAN messages, three mailboxes organized as a FIFO are provided. In
order to save CPU load, simplify the software and guarantee data consistency, the FIFO is
managed completely by hardware. The application accesses the messages stored in the
FIFO through the FIFO output mailbox.
Valid message
A received message is considered as valid when it has been received correctly according to
the CAN protocol (no error until the last but one bit of the EOF field) and It passed through
the identifier filtering successfully, see Section 22.7.4: Identifier filtering .

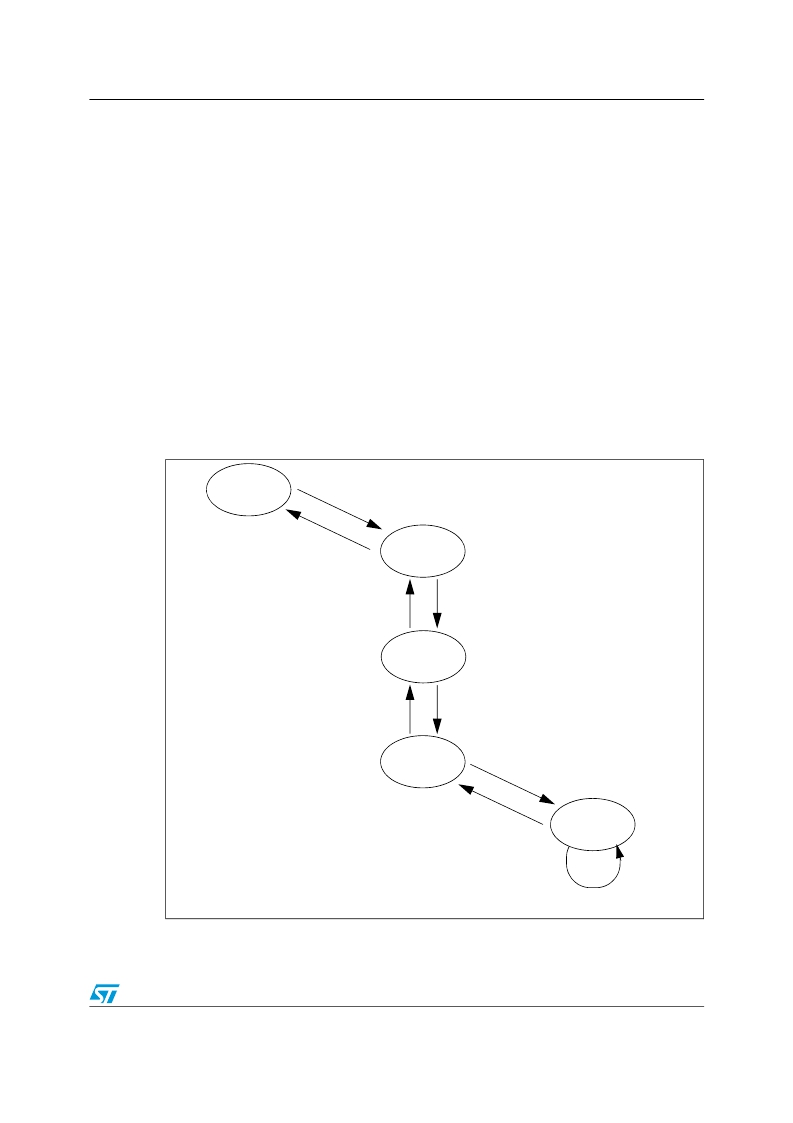

Figure 199. Receive FIFO states
EMPTY
FMP=0x00
FOVR=0
Valid Message
Received
Release
Mailbox
PENDING_1
FMP=0x01
FOVR=0
Release
Mailbox
Valid Message
Received
RFOM=1
PENDING_2
FMP=0x10
FOVR=0
Release
Mailbox
Valid Message
Received
RFOM=1
PENDING_3
FMP=0x11
FOVR=0
Valid Message
Received
Release
Mailbox
OVERRUN
FMP=0x11
FOVR=1
RFOM=1
Valid Message
Received
Doc ID 13902 Rev 9
551/995
